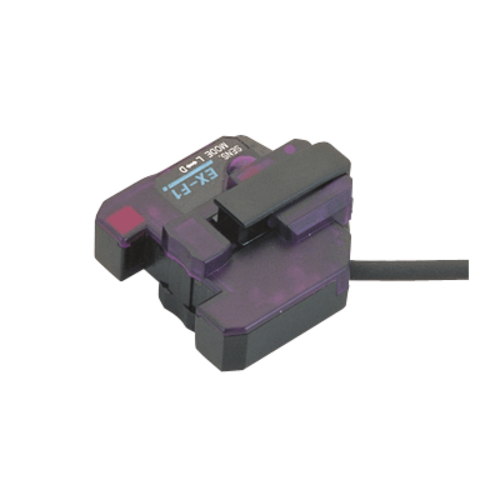

EX-F1 Leak Detection Sensor

Price 1700.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

EX-F1 Leak Detection Sensor Specification

Application
Industrial, Automotive

Sensor Type
Pipe-mountable Liquid Level Detection Sensor

Mounting Type
Pipe-mountable

Product Type
EX-F1

Output
NPN open-collector transistor

Function
Pipe-mountable Liquid Level Detection Sensor

Usage
Liquid Level Detection

Usage & Applications
Pipe-mountable Liquid Level Detection Sensor

Weight
60 Grams (g)

Rated Voltage
12 -24 Volt (V)

Warranty
1 year

Cable Type
0.1 mm2 3-core cabtyre cable, 1 m 3.281 ft long

Rated Current
30 Milliampere (mA)

Material
Enclosure: Polycarbonate, Tying band: Nylon, Anti-slip tube: Silicone

EX-F1 Leak Detection Sensor Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Delivery Time
5 Days

Main Domestic Market
All India

About EX-F1 Leak Detection Sensor

EX-F1

Product Number	EX-F1
Part Number	EX-F1
Products Name	Pipe-mountable Liquid Level Detection Sensor
Product details	Amplifier built-in, Pipe-mountable
Applicable regulations	CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Sensing object	Liquid (Note):Unclear or highly viscous liquid may not be detected stably.
Applicable pipe diameter	Outer dia. 6 to 13 mm 0.236 to 0.512 in transparent resin pipe [PFA (Fluorine resin) or equivalently transparent pipe, wall thickness 1 mm 0.039 in ] (NoteDo not use the sensor with pipes other than the above specified.)
Supply voltage	12 to 24 V DC 10 % Ripple P-P 10 % or less
Current consumption	30 mA or less (NoteUnclear or highly viscous liquid may not be detected stably.)
Output	NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current)
Output:Output operation	Switchable either Light-ON (Liquid-absent-ON) or Dark-ON (Liquid-present-ON)
Output:Short-circuit protection	Incorporated
Response time	2 ms or less
Operation indicator	Red LED (lights up when the output is ON)
Pollution degree	3 (Industrial environment)

Advanced Leak Detection Technology

The EX-F1 is specifically designed for mounting directly onto pipes, providing continuous liquid level monitoring to help prevent costly leaks. Utilizing robust materials like polycarbonate and silicone, this sensor remains firmly in place even in dynamic industrial environments. Its precise detection capabilities cater to both automotive and industrial fluid management, making it a versatile asset for any facility focused on safety and efficiency.

Versatile Applications

With its adaptable mounting system and durable construction, the EX-F1 Leak Detection Sensor fits seamlessly into a wide array of liquid monitoring setups. Whether for use in factories, automotive systems, or process plants, this sensor delivers consistent performance. The devices practical output and cable specifications make integration with existing systems hassle-free, enhancing overall operational reliability for manufacturers and service providers alike.

FAQs of EX-F1 Leak Detection Sensor:

Q: How does the EX-F1 Leak Detection Sensor operate?

A: The EX-F1 sensor is mounted directly onto a pipe using its nylon band and silicone anti-slip tube. It detects liquid levels or the presence of leaks by monitoring changes through the pipe surface, and then transmits signals through its NPN open-collector output.

Q: What types of environments and applications is the EX-F1 suitable for?

A: The sensor is ideal for industrial and automotive settings where continuous liquid level monitoring is essential. Its robust build and reliable output make it a valuable choice for factories, machinery maintenance, process plants, and vehicle fluid systems.

Q: When should the EX-F1 be used for leak detection?

A: The EX-F1 should be used wherever proactive leak or fluid level monitoring can help reduce maintenance costs or prevent equipment damage, such as during regular inspections, system installations, or upgrades in fluid-handling processes.

Q: Where is the EX-F1 sensor typically installed?

A: It is typically mounted on pipes that transport liquids, thanks to its secure pipe-mount design. Installation locations include factory pipelines, automotive fluid lines, and service conduits where liquid monitoring is required.

Q: What is the process of installing the EX-F1 Leak Detection Sensor?

A: Installation involves securing the sensor onto a pipe using the supplied nylon band and silicone anti-slip tube, and connecting the 1-meter, 3-core cabtyre cable to the monitoring system. Following the included instructions ensures optimal performance.

Q: What are the main benefits of using the EX-F1 sensor?

A: Key advantages include early leak detection to prevent costly downtime, easy installation, compatibility with various pipe types, and long-term durability due to high-quality materials. The compact size and straightforward output make integration simple.

Q: How does the warranty support for the EX-F1 function?

A: The sensor comes with a 1-year warranty covering defects in materials or workmanship. For assistance, users can contact any authorized dealer, distributor, or supplier from whom the sensor was purchased.
