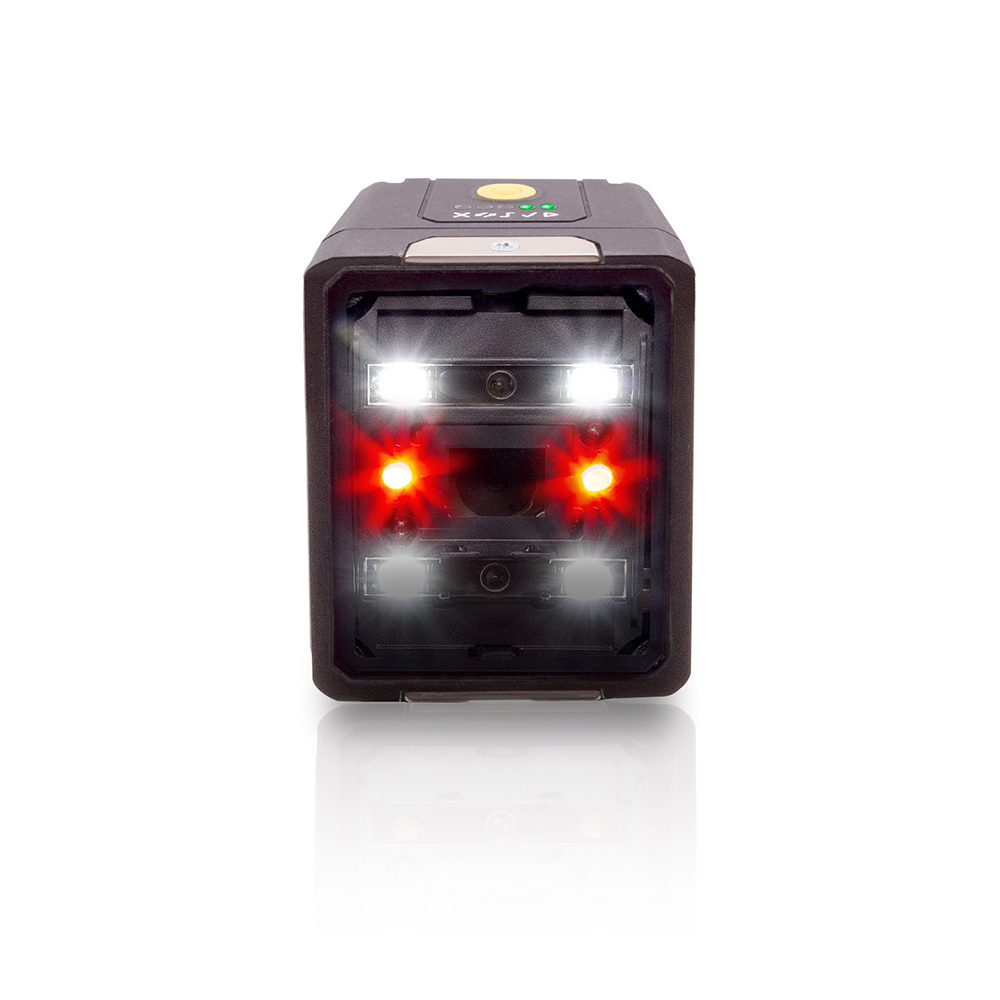

Send InquirySmart-VS-PL-5-150-WH-O Vision System
Price 104000.0 INR/ Number
MOQ : 1 Number
Smart-VS-PL-5-150-WH-O Vision System Specification
- Application
- Compact block style case
- Measurement Range
- 50mm - 150mm
- Features
- Response time 20 ms minimum (higher depending learned GOOD / NO GOOD images
- IP Rating
- IP67 / IP65
- Sensor Type
- Smart Vision Sensor
- Power Consumption
- 4.2 Watt (W)
- Interface
- 10/100 Mbit/s Ethernet
- Product Type
- Smart-VS-PL-5-150-WH-O
- Material
- PMMA / Rubber
- Output
- NPN/PNP/PUSH PULL, Ethernet
- Function
- Object detection and positioning
- Resolution
- 320x240 pixels
- Voltage
- 1030 Volt (v)
- Usage & Applications
- 20 images handling and faster response time AI Assisted setting
- Warranty
- 1 year
- Conductor
- M12 plug
Smart-VS-PL-5-150-WH-O Vision System Trade Information
- Minimum Order Quantity
- 1 Number
- Payment Terms
- Cash in Advance (CID)
- Main Domestic Market
- All India
About Smart-VS-PL-5-150-WH-O Vision System
Nominal Sensing Distance : 150 mm
Sensitivity Adjustment : Teach-in/Web Server GUI
Minimum Sensing Distance (blind zone) : 50mm
Output Type : NPN/PNP/PUSH PULL, Ethernet
Output Function : Data Valid/GOOD/NO GOOD
Operating Voltage : 10...30VDC
Output Voltage Drop : 100 mA
LED Indicators : green Run / green GOOD / yellow TRIGGER / red NO GOOD
Power Consumption : 0.40 - 0.14 A (4.2W)
Connections : M12 plug
Shaft Material : Rubber
