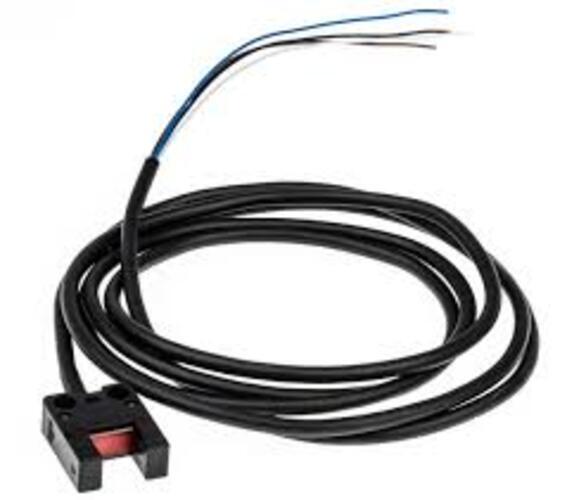

Send InquiryPM-U25 U-shaped Micro Photoelectric Sensor
Price 620 INR/ Number
MOQ : 1 Number
PM-U25 U-shaped Micro Photoelectric Sensor Specification
- IP Rating
- IP64 (IEC)
- Application
- Ultra-small / Cable type [U type]
- Cable Length
- 1 Meter (m)
- Sensor Type
- Amplifier Built-in / U-shaped Micro Photoelectric Sensor
- Measurement Range
- 6 mm
- Product Type
- PM-U25
- Output
- NPN open-collector transistor
- Voltage
- 5 to 24 Volt (v)
- Usage & Applications
- Ultra-small / Cable type [U type]
- Weight
- 15 Grams (g)
- Warranty
- 1 Year
- Cable Type
- Yes
- Material
- Enclosure: PBT Display section: Polycarbonate
- Frequency
- 10 to 2,000 Hertz (HZ)
PM-U25 U-shaped Micro Photoelectric Sensor Trade Information
- Minimum Order Quantity
- 1 Number
- Payment Terms
- Cash in Advance (CID)
- Main Domestic Market
- All India
About PM-U25 U-shaped Micro Photoelectric Sensor
| Product Number | PM-U25 |
|---|---|
| Part Number | PM-U25 |
| Products Name | Amplifier Built-in / U-shaped Micro Photoelectric Sensor |
| Product details | Ultra-small / Cable type [U type] |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL Recognition certification (Note) : Conformed from December 2021 production. |
| Sensing range | 6 mm(fixed) |
| Minimum sensing object | 0.8 1.2 mmopaque object |
| Hysteresis | 0.05 mmor less |
| Repeatability | 0.01 mmor less |
| Supply voltage | 5 to 24 V DC 10 % Ripple P-P 10 % or less |
| Current consumption | 15 mA or less |
| Output | NPN open-collector transistor Maximum sink current: 50 mA Applied voltage: 30 V DC or less (between output and 0 V) Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) |
| Output:Output operation | Incorporated with 2 outputs: Light-ON / Dark-ON |
