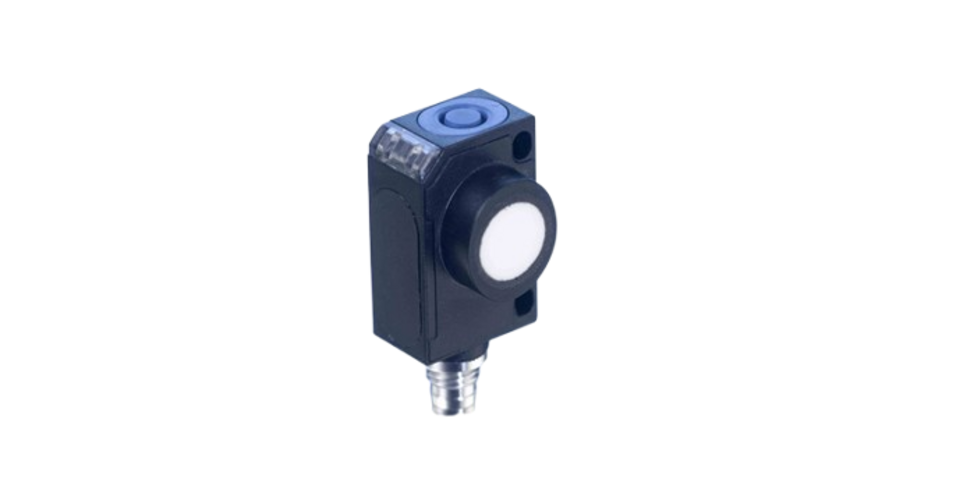

Send Inquiryzws-35/CU/QS Sensor
Price 19000 INR/ Number
MOQ : 1 Number
zws-35/CU/QS Sensor Specification
- Sensor Type
- zws ultrasonic sensors
- Features
- Teach-in via push-button
- Measurement Range
- 64 - 600 mm
- IP Rating
- IP 67
- Product Type
- zws-35/CU/QS
- Material
- ABS
- Input
- Synchronization input
- Output
- analogue output
- Resolution
- 0.20 mm
- Weight
- 11 Grams (g)
- Warranty
- 1 year
zws-35/CU/QS Sensor Trade Information
- Minimum Order Quantity
- 1 Number
- Main Domestic Market
- All India
About zws-35/CU/QS Sensor
zws-35/CU/QS
1 x analogue 0-10 V
Measuring Range : 64-600 mm
Design : Cuboidal
Operating Mode : Analogue Distance Measurement
Measurement Method : Echo Propagation Time Measurement
Transducer Frequency : 400 kHz
Blind Zone : 64 mm
Operating Range : 350 mm
Maximum Range : 600 mm
Operating Voltage : 20 V to 30 V dc, Reverse Polarity Protection
Type of Connection : 4-pin M8 Circular Connector
