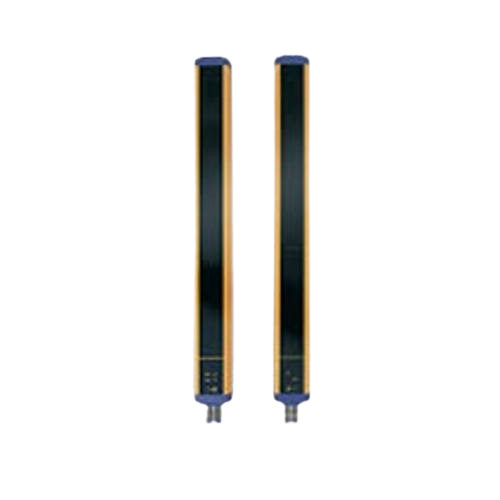

Send InquirySG2-30-075-OO-X Light Curtain
Price 21000.0 INR/ Number
MOQ : 1 Number
SG2-30-075-OO-X Light Curtain Specification
- Application
- Emitter+Receiver
- Power Consumption
- 3 Watt (W)
- Sensor Type
- Safety Light Curtain
- Operating Temperature
- 15 Celsius (oC)
- Sensitivity
- n/a
- IP Rating
- 65
- Measurement Range
- 19m
- Power Rating
- 5W
- Product Type
- Type 2
- Output
- 2 x PNP-NO (OSSD safety output)
- Function
- Hand protection res. 30 mm
- Usage
- Safety Purpose
- Accuracy
- 19 mm
- Resolution
- 30mm
- Voltage
- 24 Volt (v)
- Rated Voltage
- 24 Volt (V)
- Usage & Applications
- Emitter + Receiver
- Warranty
- 1 year
- Material
- Painted aluminum / PMMA / PC MAKROLON
- Conductor
- M12-4 poles (emitter) M12-5 poles (receiver)
- Features
- Cost effective Finger, hand, arm detection with basic functions
SG2-30-075-OO-X Light Curtain Trade Information
- Minimum Order Quantity
- 1 Number
- Payment Terms
- Cash in Advance (CID)
- Delivery Time
- 8 Week
- Main Domestic Market
- All India
About SG2-30-075-OO-X Light Curtain
SG2-30-075-OO-XNominal Sensing Distance - 0,2...19m
Resolution - 30mm
Controlled Height - 750mm
No. of Rays - 40
Function Principle - Emitter + Receiver
Available Functions - Automatic Restart
Description - Compact Standard
Functions - Hand Protection 30mm
Type - Type 2 Safety Light Curtain (A)
SIL - 1
PL-c
Output Type - 2*PNP-NO
Response Time - 9,4 ms
Operating Voltage - 24 VDC20%
Storage Temperature - -25...+70C
Mechanical Protection - IP65
