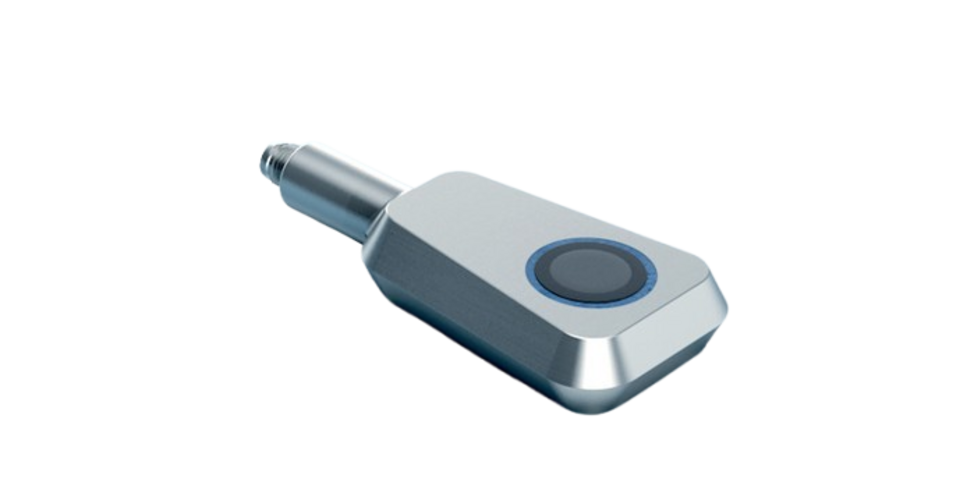

Send Inquirypms-35/CF/A1 Sensor
Price 31000 INR/ Number
MOQ : 1 Number
pms-35/CF/A1 Sensor Specification
- Measurement Range
- 70 - 600 mm
- Features
- Teach-in via com input on pin 2 LCA-2 with LinkControl IO-Link
- Sensor Type
- pms ultrasonic sensors
- IP Rating
- IP 66, IP 67, IP 68
- Product Type
- pms-35/CF/A1
- Material
- stainless steel
- Input
- com input synchronisation input teach-in input
- Output
- Push-Pull
- Resolution
- 0.10 mm
- Weight
- 140 Grams (g)
- Warranty
- 1 year
pms-35/CF/A1 Sensor Trade Information
- Minimum Order Quantity
- 1 Number
- Main Domestic Market
- All India
About pms-35/CF/A1 Sensor
pms-35/CF/A1
1 x Push-Pull
Measuring Range :70-600 mm
Design : Innovative Housing Design in Washdown
Operating Mode : IO-Link
Proximity Switch/ Reflective Mode
Particularities : IO-Link
Hygienic Design
Means of Measurement : Echo Propagation Time Measurement
Transducer Frequency : 400 kHz
Blind Zone : 70 mm
Operating Range : 350 mm
Maximum Range : 600 mm
Operating Voltage : 10-30 V DC, Reverse Polarity Protection
Type of Connection : 4-pin M8 initiator plug
