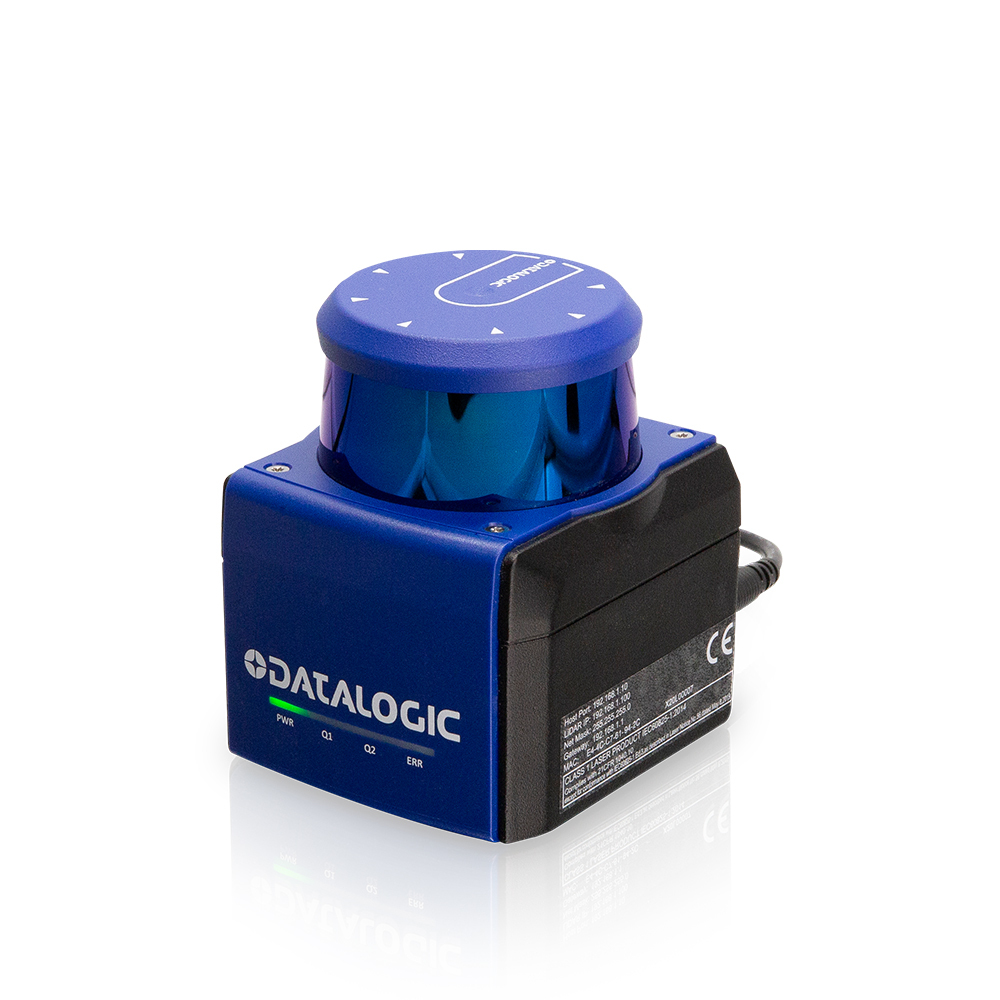

Send InquiryLidar Scanner
Price 250000.0 INR/ Number
MOQ : 1 Number
Lidar Scanner Specification
- Interface
- Generic web browser
- Operating Temperature
- -20 ...+50 Celsius (oC)
- Features
- Compact, reliable and rugged Navigation Lidar for automated guided vehicles
- Response Time
- Seconds
- Sensor Type
- LIDAR
- Power Consumption
- 7 Watt (W)
- IP Rating
- ip66
- Measurement Range
- 0.2 - 50M
- Power Rating
- 25°C / 15 Hz)
- Product Type
- Lidar Guidance Sensor
- Output
- IEEE 802.3u 100Mbps Ethernet
- Function
- AGV Navigation Laser Scanner
- Usage
- Differentiation between natural objects and reflectors
- Accuracy
- 80 %
- Resolution
- 0.06° angle
- Voltage
- 12 - 30 Volt (v)
- Rated Voltage
- 12 to 32 Volt (V)
- Weight
- 900 Grams (g)
- Usage & Applications
- Lidar for navigation and guidance
- Warranty
- 1 Year
- Frequency
- 10/15/20/25 Hertz (HZ)
- Rated Current
- 30 Milliampere (mA)
- Material
- Metal - Aluminium / PC
Lidar Scanner Trade Information
- Minimum Order Quantity
- 1 Number
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 100 Per Month
- Delivery Time
- 7 Days
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
About Lidar Scanner
- Compact, reliable and rugged Navigation Lidar for automated guided vehicles
- ToF technology on infrared laser
- 2D Measurement data for natural or marker navigation
- 360 measurement for all-round scanning
- Differentiation between natural objects and reflectors
- Compact design for easy mechanical integration
- Simple and quick configuration and monitoring
- High precision and reliable measurement up to 50 meters
- 60,000 measured points per second
- Up to 25 Hz selectable rotation frequency
- 0.06 angle resolution
- Dimensions: 95 x 97 x 116 mm
