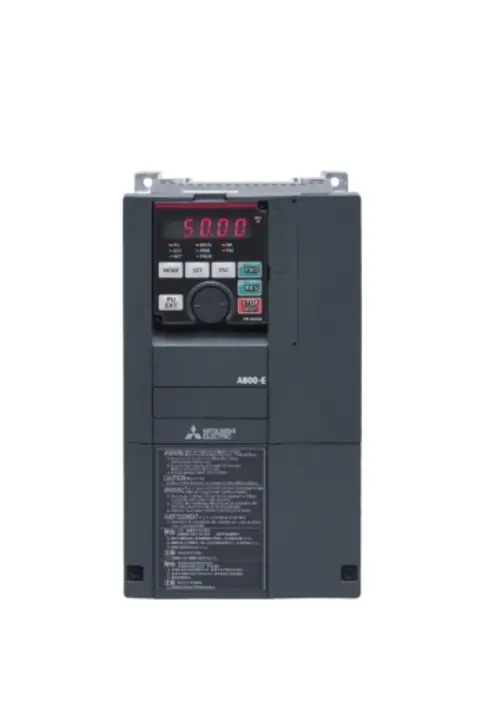

Send InquiryFR-A840-02600-2-60 VFD
Price 245360 INR/ Number
MOQ : 1 Number
FR-A840-02600-2-60 VFD Specification
- IP Rating
- IP00
- Drive Type
- Variable Frequency Drive
- Phase
- Three
- Frequency
- 0.2-590 Hertz (HZ)
- Warranty
- 1 Year
- Height
- 620 Millimeter (mm)
- Product Type
- FR-A840-02600-2-60
- Weight
- 55 Kilograms (kg)
- Length
- 300 Millimeter (mm)
- Width
- 465 Millimeter (mm)
FR-A840-02600-2-60 VFD Trade Information
- Minimum Order Quantity
- 1 Number
- Payment Terms
- Cash in Advance (CID)
- Main Domestic Market
- All India
About FR-A840-02600-2-60 VFD
| Series | FR-A SERIES |
|---|---|
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 260 |
| Rated Output Current LD (A) | 216 |
| Rated Output Current ND (A) | 180 |
| Rated Output Current HD (A) | 144 |
| Rated Motor Capacity SLD (kW) | 132 |
| Rated Motor Capacity LD (kW) | 110 |
| Rated Motor Capacity ND (kW) | 90 |
| Rated Motor Capacity HD (kW) | 75 |
| Frequency Range (Hz) | 0.2ï590 |
| Control Method | VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | OPTIONAL |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC, CC-LINK IE FIELD NETWORK |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss SLD (W) | 3.150 |
| Power Loss LD (W) | 2.575 |
| Power Loss ND (W) | 2.200 |
| Power Loss HD (W) | 1.770 |
| Standby Power Consumption (W) | 46 |
| Protection Class | IP00 |
